Here is Why The Boeing 777X’s Wingtips Are Completely different Than Different Widebodies

The Boeing 777X could seem like merely an up to date model of Boeing’s long-standing 777 household, which has carried practically 4 billion passengers on greater than 16 million flights since coming into service with United Airways in June 1995. Nonetheless, one characteristic stands out to anybody watching the plane taxi or put together for departure: its uncommon folding wingtips. Not like different widebody plane, the outer elements of the 777X’s wings can really fold up when the airplane is on the bottom.

Whereas this idea could appear unusual for a industrial airliner, the design has a really sensible objective. Some time again, Easy Flying explored how the 777X’s new composite wing makes it extra environment friendly and performs higher than the older 777 fashions. However the folding wingtips increase one other necessary query: why did Boeing select to design them this manner within the first place? On this information, we’ll look carefully at why the 777X’s wingtips differ from these on different widebody plane, how the folding mechanism operates, and why this characteristic might affect the way forward for industrial plane design.

Why The Boeing 777X Has Folding Wingtips

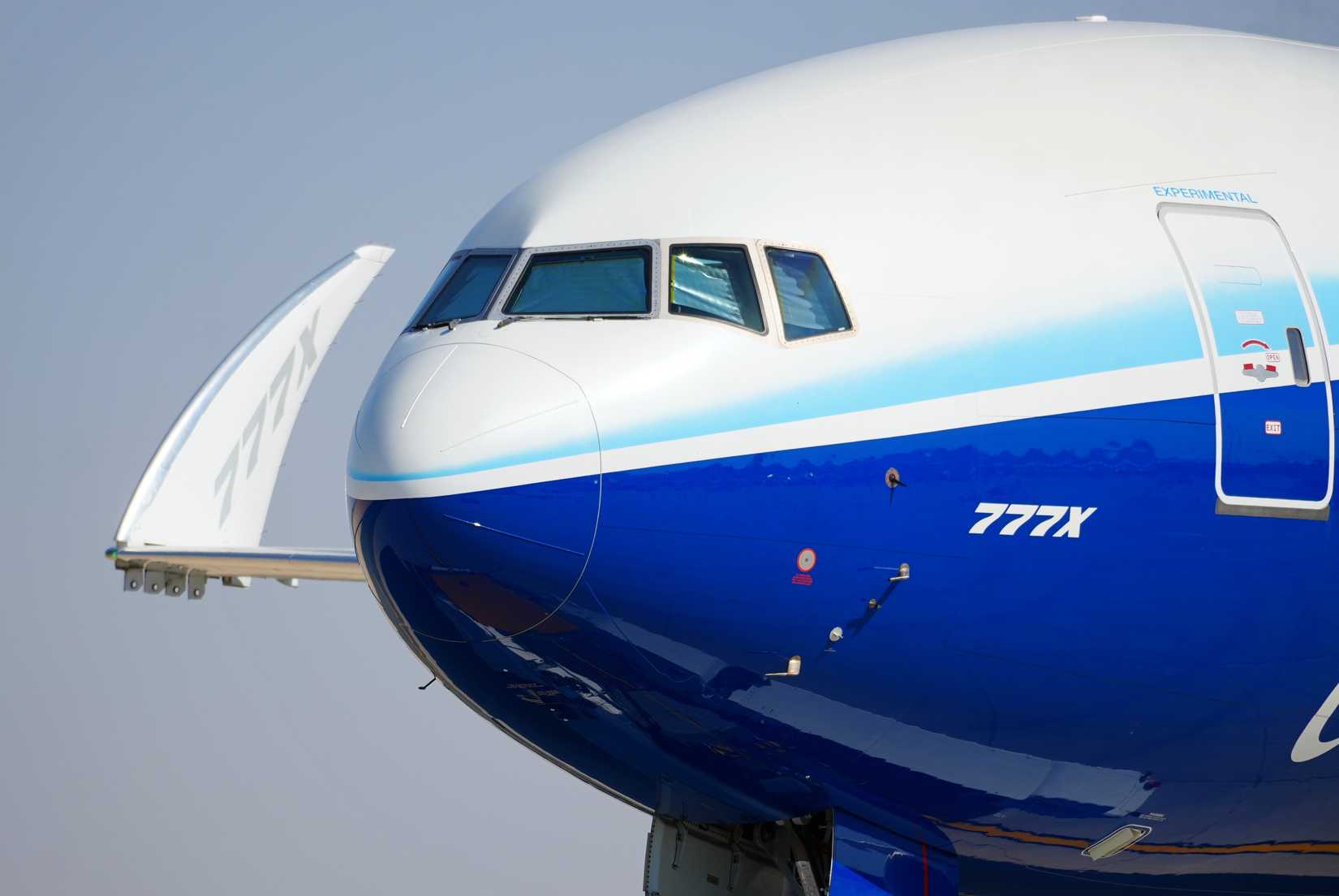

The Boeing 777X stands out from different industrial planes as a result of it has folding wingtips, which is a fairly uncommon design alternative. When the airplane is on the bottom, the outer elements of every wing fold upward, giving the plane a novel look whereas taxiing or parked on the gate. This characteristic was added to deal with a sensible challenge created by the plane’s big wingspan. Merely put, the 777X’s wings are so massive that they’d not match at many airport gates with out a option to cut back their width when on the bottom.

In keeping with Boeing’s technical specs, the 777X has a wingspan of 235 ft (71.8 meters) when totally prolonged in flight, however 212 ft (64.9 meters) whereas on the bottom, making it the biggest wing ever connected to a industrial plane. The explanation for this design comes all the way down to effectivity. Boeing mentioned the plane incorporates “new breakthroughs in aerodynamics and engines,” serving to the 777-9 obtain “20% decrease gas use and emissions” in contrast with the plane it’s designed to interchange.

Longer wings assist planes fly higher by decreasing drag and giving extra carry, which implies they use much less gas on lengthy journeys. Nonetheless, this bigger wingspan would usually place the plane in a better airport compatibility class, which means many airports would want expensive upgrades to accommodate it. In keeping with the producer, the plane is designed for “seamless integration with the 777 and 787 Dreamliner households,” which means airways can introduce the plane with out dramatically altering current infrastructure.

How The Folding Wingtip Mechanism Works

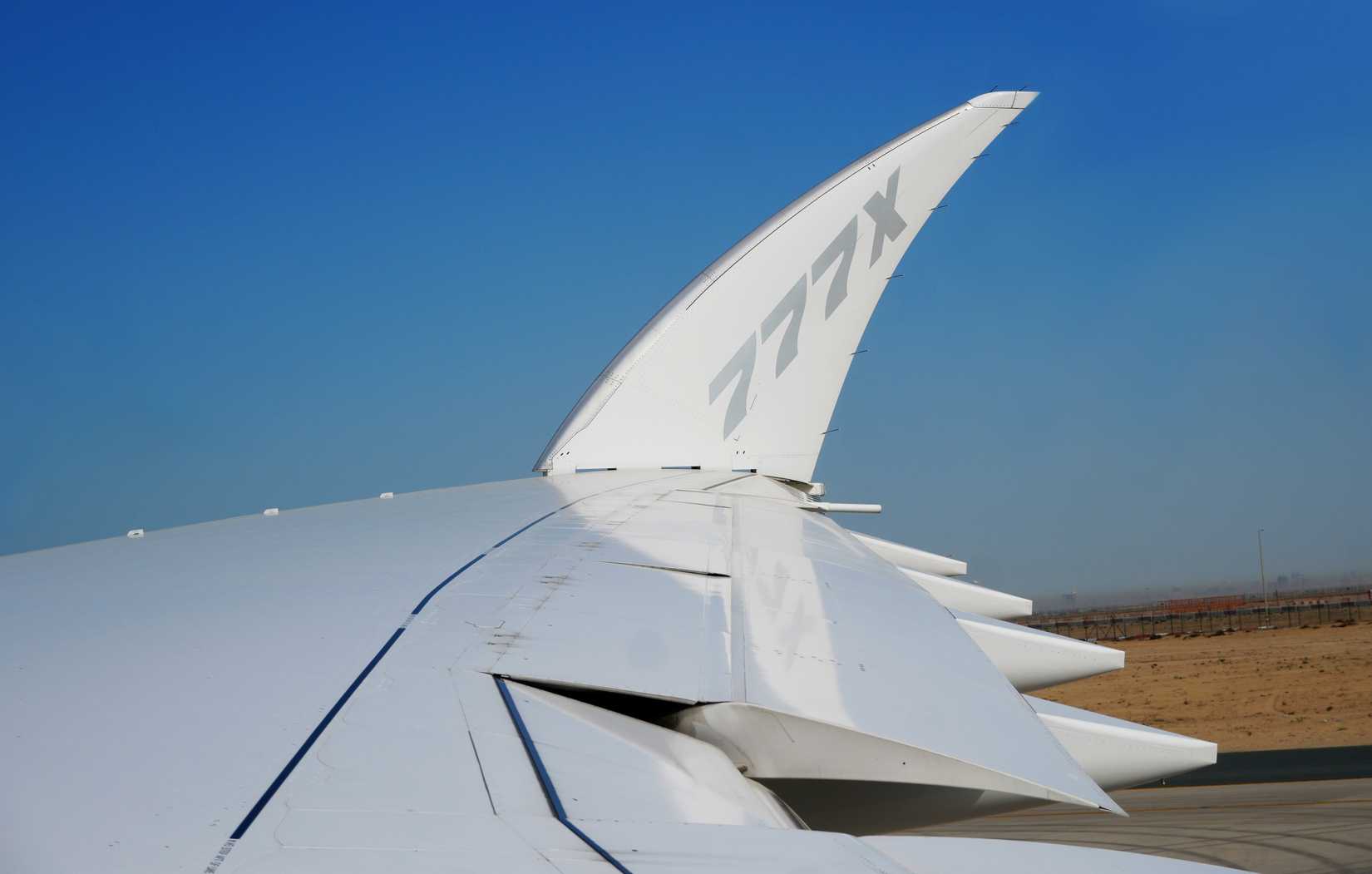

The folding wingtips on the Boeing 777X could appear dramatic, however the system behind them is sort of easy. Aviation professionals on the information platform Aviation Stack Change clarify that the outer a part of every wing is hinged, permitting it to rotate upward when the plane is on the bottom. This reduces the wingspan after touchdown and through taxiing, making it simpler to maneuver round airports and park at commonplace gates meant for barely smaller widebody plane.

Within the cockpit, pilots management the system with a devoted swap on the overhead panel. In keeping with Aviation Stack Change, this swap lets the flight crew prolong or retract the wingtips relying on whether or not the plane is making ready for flight or working on the bottom. The wingtips should be totally prolonged and locked in place earlier than takeoff. This ensures the wing acts as a single aerodynamic floor throughout flight.

The mechanism features a heavy-duty hinge and locking system with a number of security layers. As soon as prolonged for flight, massive locking pins safe the wingtip, stopping motion underneath aerodynamic masses, as famous on Aviation Stack Change. Sensors and cockpit alerts additionally verify that the wingtips are totally deployed earlier than takeoff. This implies the plane can not safely depart except the system confirms each wingtips are correctly locked, including an additional layer of security.

Why The 777X Wanted Longer Wings Than Earlier 777 Fashions

The folding wingtips on the Boeing 777X let it match into common airport gates, however the true purpose for that design is as a result of the airplane has for much longer wings. Making ultra-long-haul routes extra environment friendly required making massive adjustments to the aerodynamics. A great way to make an plane extra environment friendly is to extend its wingspan. This helps the wing generate extra carry and cut back drag at cruising pace.

The brand new plane is sort of totally different from the sooner 777 fashions. This wing design, which is longer and narrower, improves the plane’s aerodynamics by elevating its side ratio. This variation lets the jet glide by the air extra easily and use much less gas. These aerodynamic adjustments assist cut back gas burn per seat by round 10 to twenty % in comparison with different planes in its class.

The brand new wing additionally marks an enormous technological step ahead for Boeing. Not like the sooner 777 fashions that largely used aluminum for his or her constructions, the 777X wing is made with carbon-fiber composites, that are lighter and stronger. As Easy Flying reported beforehand, this permits the massive wings to bend loads throughout flight, generally curving greater than 20 ft upward attributable to air strain. This flexibility helps the plane preserve easy air circulate over the wing.

How The Folding Wingtip Helps Airports Deal with The 777X

The folding wingtips on the Boeing 777X are made to repair an actual drawback with airport area. Since this plane’s wings are loads longer than the older 777 fashions, many airports would have a tough time becoming them in with their present taxiways and gates. When the plane is on the bottom, folding the outer elements of the wings reduces its wingspan, so it will probably use airports designed for older widebody jets.

In keeping with airport design requirements from the Worldwide Civil Aviation Group (ICAO), plane are grouped into totally different dimension classes primarily based largely on their wingspan. When the 777X spreads its wings totally whereas flying, it often matches into the larger Code F group, identical to plane such because the Airbus A380. When the wingtips are folded on the bottom, the plane really matches inside Code E limits, which is similar class utilized by the Boeing 777-300ER and fairly just a few different long-haul widebodies. This lets airways carry within the plane with out airports having to redo taxiways, gates, or parking stands.

Whereas growing the airplane, Boeing checked out a whole lot of airports worldwide to make sure the plane would match and work easily with present airport layouts after folding its wings. The folding course of happens rapidly throughout regular operations, which helps the plane taxi and park with out disrupting airport site visitors. The 777X continues to be present process testing and certification earlier than it begins flying with airways, however because it’s primarily based on the 777 design, most worldwide hubs that already function 777 plane shouldn’t have any drawback dealing with it without having many adjustments.

How Regulators Accredited Folding Wingtips

One of many questions aviation fanatics usually ask is how regulators just like the Federal Aviation Administration (FAA) ended up approving one thing as uncommon as folding wingtips on an enormous industrial airplane. For Boeing, certifying this characteristic meant displaying it was simply as protected and dependable as a set wingtip all through each a part of the flight.

Because the traditional plane certification guidelines underneath Title 14 of america Division of Transportation’s rules didn’t account for giant transport plane with foldable major wings, the FAA created some particular situations only for the 777‑8 and 777‑9. These situations meant Boeing needed to show that the wingtips stayed locked in place throughout flight and that the flight crew would get a number of unbiased warnings if the wingtips weren’t set accurately for takeoff. The principles additionally say the mechanism has to work safely in sturdy winds and might’t transfer accidentally throughout a flight.

Regulators additionally wanted to verify the design labored properly even in powerful floor situations, like sturdy gusts of wind and crosswinds whereas taxiing. Because the folding wingtips change the primary lifting floor of the plane, the FAA made certain that their correct place is vital for protected flying in the course of the certification course of. So, Boeing’s submission had a radical evaluation and testing information displaying that the guidelines might solely transfer on the bottom, and whereas flying, they’d act like a stable, unmovable a part of the wing.

Might Folding Wingtips Change into Extra Widespread On Future Plane?

Folding wingtips let plane have the aerodynamic benefits of longer wings with out inflicting issues at airports with restricted area. These wings fold again in opposition to the plane’s physique, letting it match into common gates with out hassle whereas nonetheless giving higher carry and saving gas when flying.

The system runs fully by itself, with security locks and cockpit alerts that be sure the wingtips are in the correct place earlier than takeoff. Airways get extra flexibility, and airports can deal with larger plane with out spending loads on renovations.

As supplies change into lighter and hinges get extra dependable, folding wingtips may begin displaying up on future long-range jets and freighters. This innovation lets designers give attention to making issues environment friendly and high-performing with out worrying about airport limitations.
