Why 4 Engine Plane Might Go Again Into Manufacturing

4-engine industrial jets just like the legendary jumbo Boeing 747 and superjumbo Airbus A380 have largely been phased out in favor of extra environment friendly twin-engine widebodies. But, there are some instances that recommend future demand for four-engine passenger plane might re-emerge, even when solely in area of interest markets.

The world’s busiest airports are experiencing rising congestion and the restricted slots for takeoff and touchdown are getting tighter. If airways can’t improve flight frequency, the one method to accommodate extra passengers is to fly bigger plane. Quadjet jumbos, with their large capability, can effectively serve the densest routes between main worldwide hubs, or so-called “trunk routes,” the place passenger masses commonly ferry 500 or extra flyers at a time.

Quad-Engine Demand On The Rise?

The marketplace for outsized or heavy-lift cargo is just not solely exceptionally sturdy, however rising because of rising on-line commerce and the globalized economic system. Regular demand for the 747-8F and even the Antonov AN-124 has proven no signal of slowing down. 4 engines are extremely advantageous to elevate very heavy or cumbersome cargo, particularly in hot-and-high circumstances or on shorter runways.

As world cargo volumes continue to grow, and significantly if outsize payloads like parts for renewable power, aerospace, and humanitarian reduction, airways and cargo operators see the enterprise case for brand spanking new multi-engine freighter designs. One of many world’s largest air cargo carriers, Atlas Air, has a fleet composed solely of 747 jets, together with a spread of variants.

New twinjets, just like the 777 and A350, are licensed to fly routes removed from diversion airports, however very lengthy polar or oceanic routes nonetheless current challenges. 4-engine plane usually are not topic to the identical extended-range twin-engine (ETOPS) restrictions, to allow them to supply extra direct routings throughout distant areas.

The additional engines merely present the next stage of redundancy, which stays engaging to safety-conscious operators and passengers. Rising demand for nonstop flights over ultra-remote areas is one other case that might attract renewed curiosity in four-engine designs.

The Fall Of The Quadjet

For nearly half a century, the 747 was an iconic image of intercontinental air journey. A mix of know-how, economics, and regulation led to the demise of the 747 together with the Airbus A380, and Airbus A340 quadjets. The decline started as new high-thrust, high-bypass twinjets proved able to hauling 300- to 400-flyers plane between any two cities beneath ETOPS.

Coming greater than three many years after the primary 747 in 1969 was Boeing’s closing iteration, the 747-8, which launched within the late 2000s with a stretched fuselage and new GEnx engines. By 2020, Boeing introduced that the final 747-8F would go away the Everett manufacturing facility because the “sprint eight” line spun down, with the ultimate plane handed over in 2023.

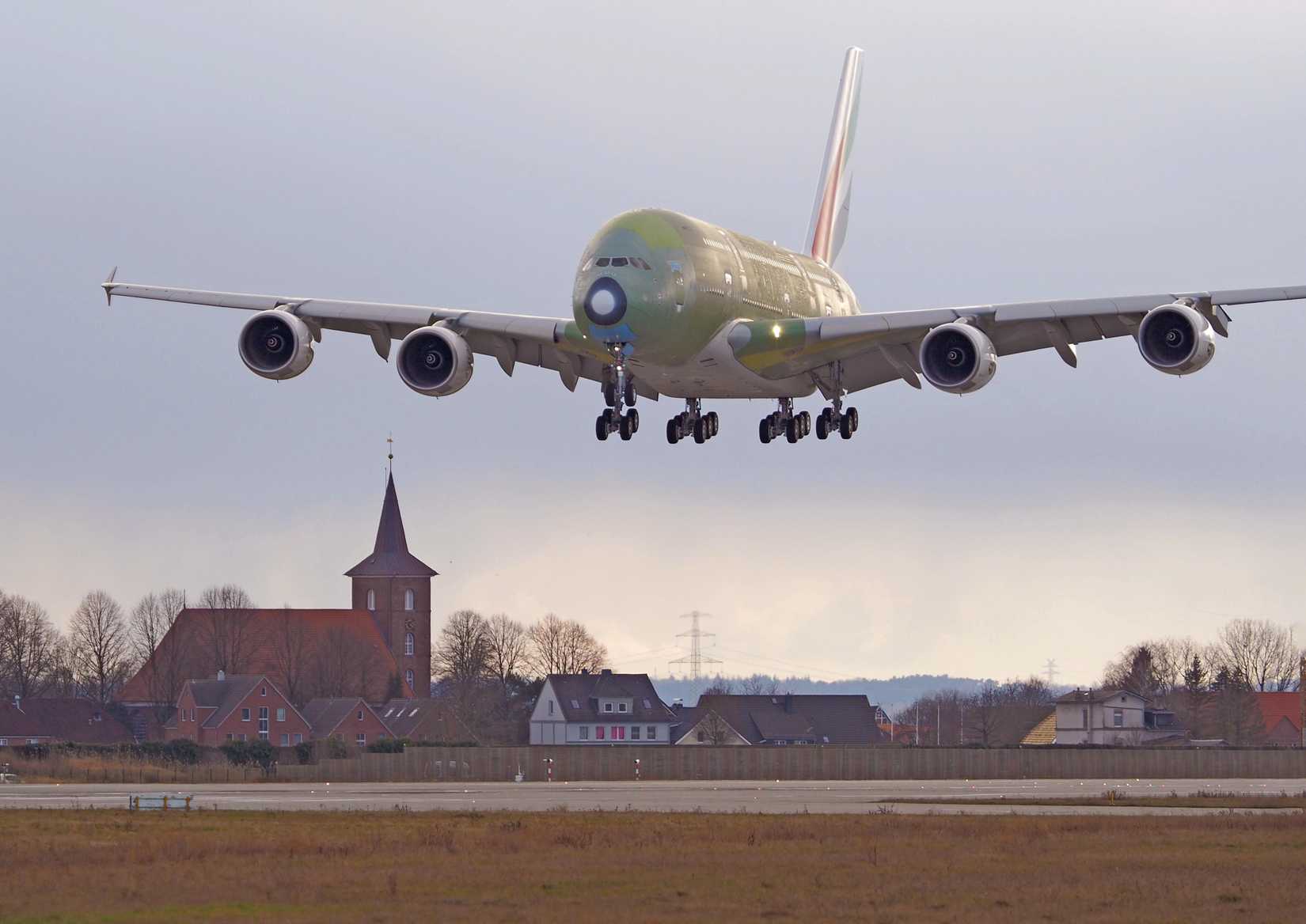

The Airbus A380 launched in 2000 on the premise that site visitors between the world’s largest hubs would outgrow out there slots, forcing airways to fly increased seat-count jets. By 2012, the Boeing 777-300ER was incomes airways main financial savings per seat, and later the Airbus A350-1000 started providing the identical twinjet economics.

Emirates, the kind’s anchor, needed to minimize and reshuffle its backlog as exterior financial forces took their toll on the airline business, and no different service stepped up with follow-on orders. In February 2019, Airbus introduced that A380 manufacturing would stop, and the ultimate plane was delivered to none aside from Emirates in 2021.

The Airbus A340 has an identical story however from an earlier time. It unraveled when gasoline costs climbed sharply within the early 2000s, magnifying the penalty of carrying 4 medium-sized engines as a substitute of two massive ones. Airbus tried to rescue the road with the longer-range A340-500 and the higher-capacity A340-600, however orders dried up. In November 2011, Airbus formally closed the order e-book, and the final of the A340s left closing meeting in 2012.

The Limits Of The Twinjet

A four-engine airliner, such because the 747, affords better freedom than a big twin like the 777. A quad has true propulsion redundancy, permitting the plane to retain 75% of its thrust and bleed-air, electrical-power, and hydraulic-pressure technology even when one engine is misplaced. This depth of redundancy offers quads increased dispatch reliability on routes the place an alternate could be time zones away.

Distributing the required thrust amongst 4 smaller engines permits the airframe to develop bigger with out asking anyone powerplant to succeed in extremes of diameter or turbine temperature. This ends in better take-off efficiency at hot-and-high airports, sufficient put in energy to elevate outsized freight, and the structural advantage of wing-bending reduction created by outboard engines.

The 747 household can carry out a three-engine ferry, permitting airways to reposition a 747 with one engine eliminated for upkeep or carry a spare engine beneath the wing in “fifth-pod” supply configuration. Ought to there be some key breakthroughs with know-how like sustainable fuels or airframe composite applied sciences, the effectivity hole between twins and quads might slim.

Though the business development is firmly towards high-bypass twinjets, shifting circumstances round infrastructure, ultra-long-haul operations, specialist cargo calls for, or new technological breakthroughs might create a renewed, if restricted, area of interest for four-engine industrial plane within the coming many years. Any resurgence would possible be centered on explicit high-density, distant, or heavy-lift markets, moderately than changing into the mainstay of worldwide aviation as soon as once more.

The Distinctive Area of interest Of The 747

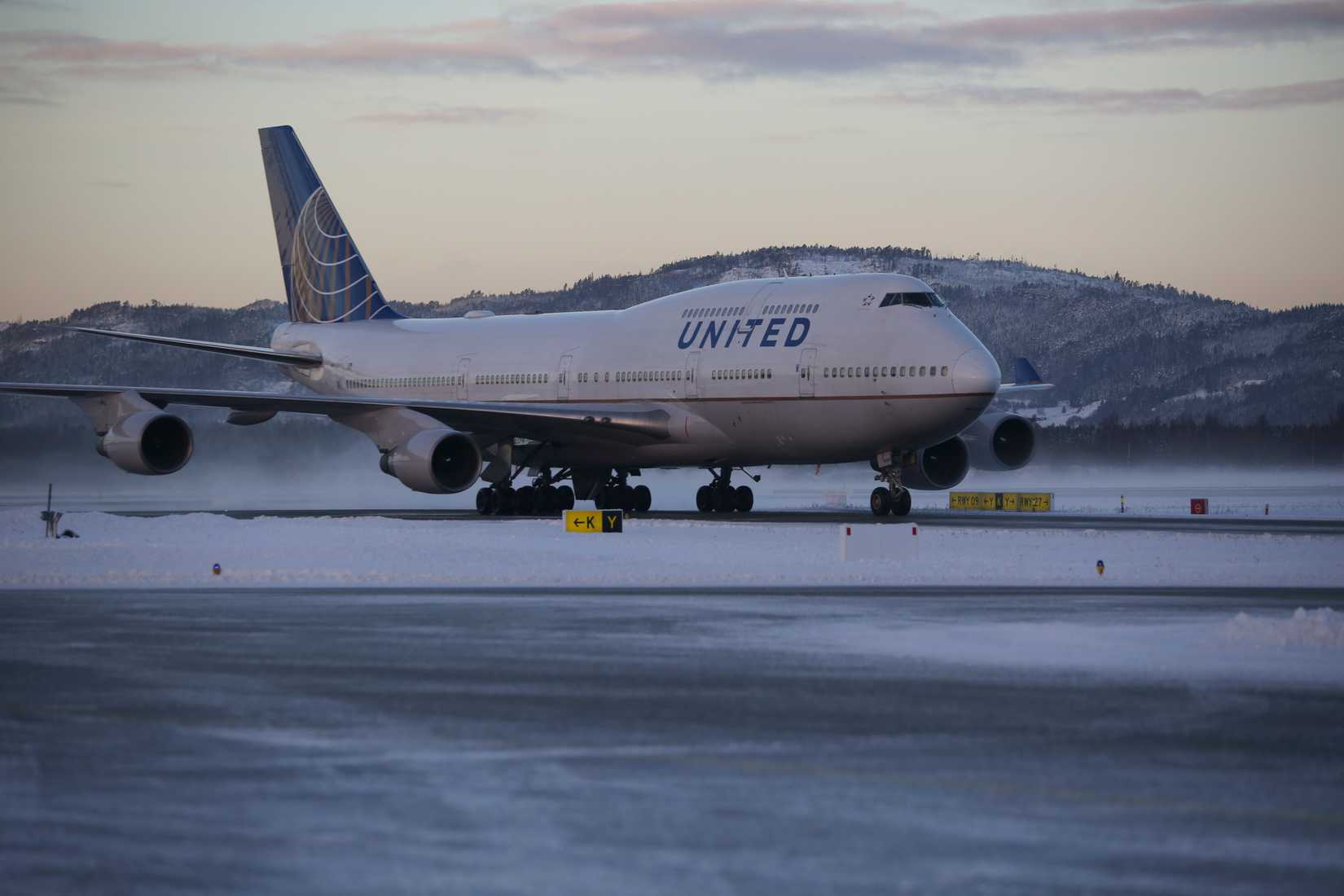

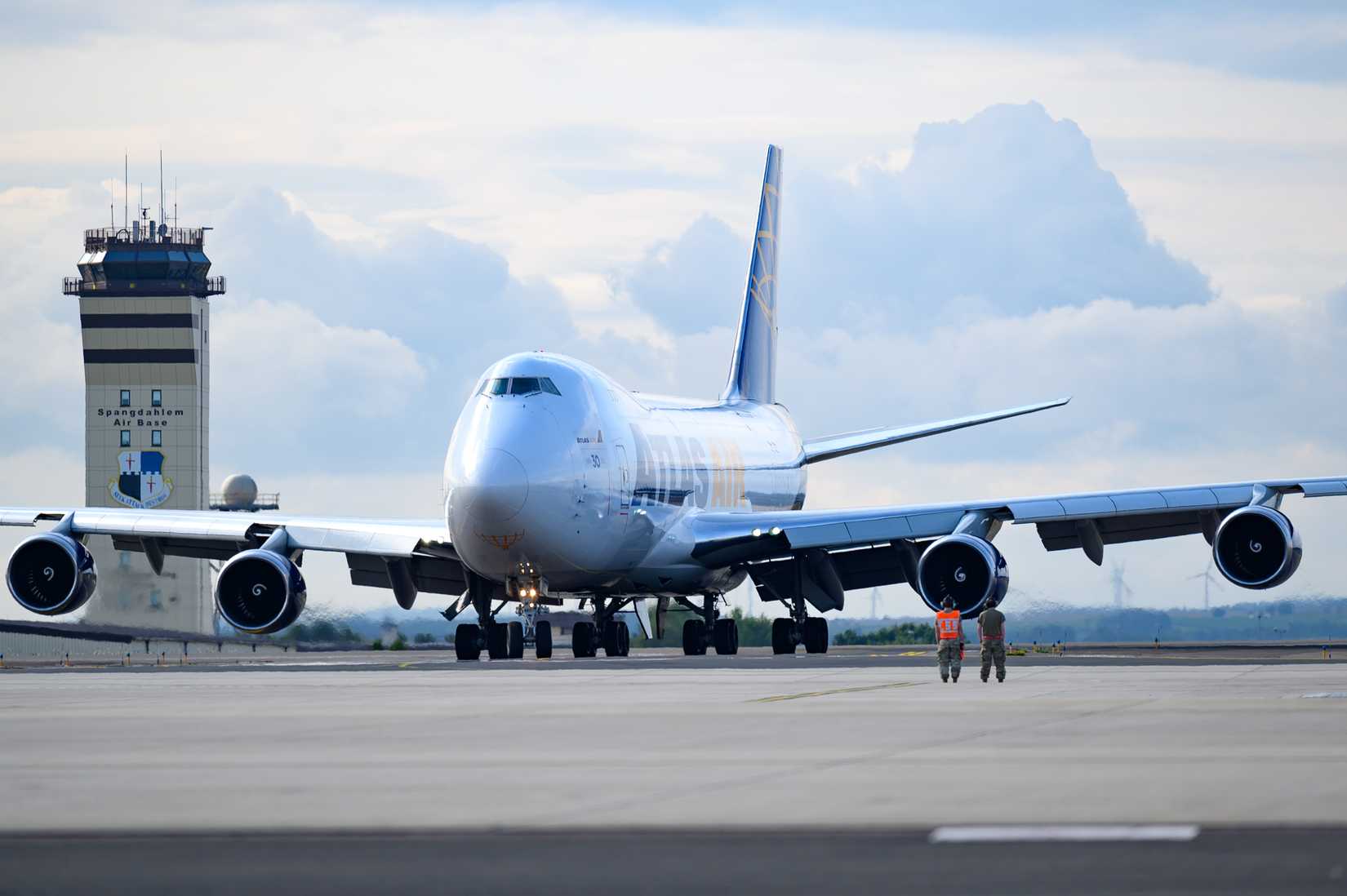

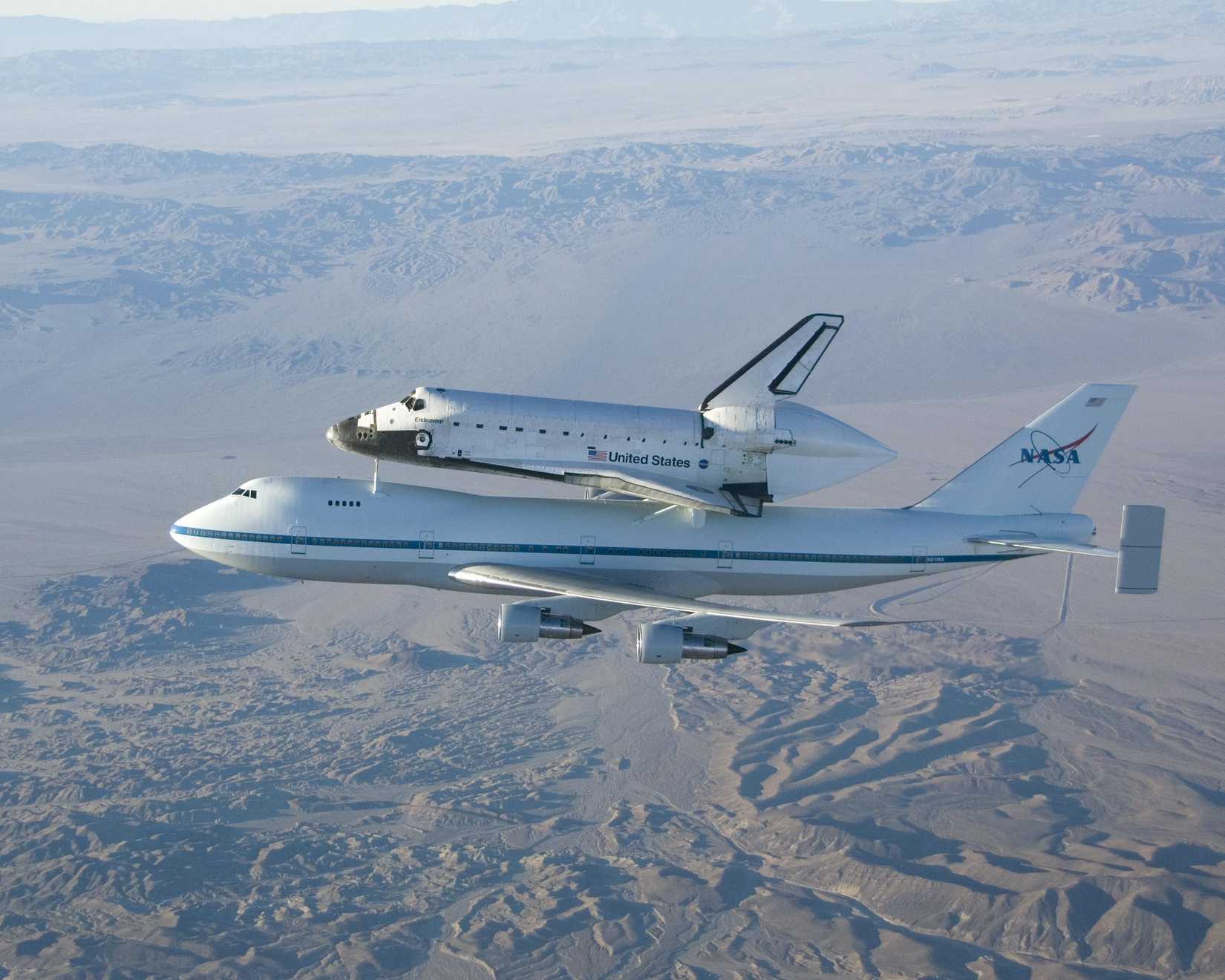

The 747 stays the best choice for special-airlift plane, as it could possibly deal with massive cargo masses or carry out distinctive authorities and industrial missions that just about nothing else can. The 747’s essential deck can load freight via a lifting nostril door, permitting operators to hold large objects with out disassembly. The 747’s 4 engines offers it the ability to make use of shorter runways and fly with excessive efficiency.

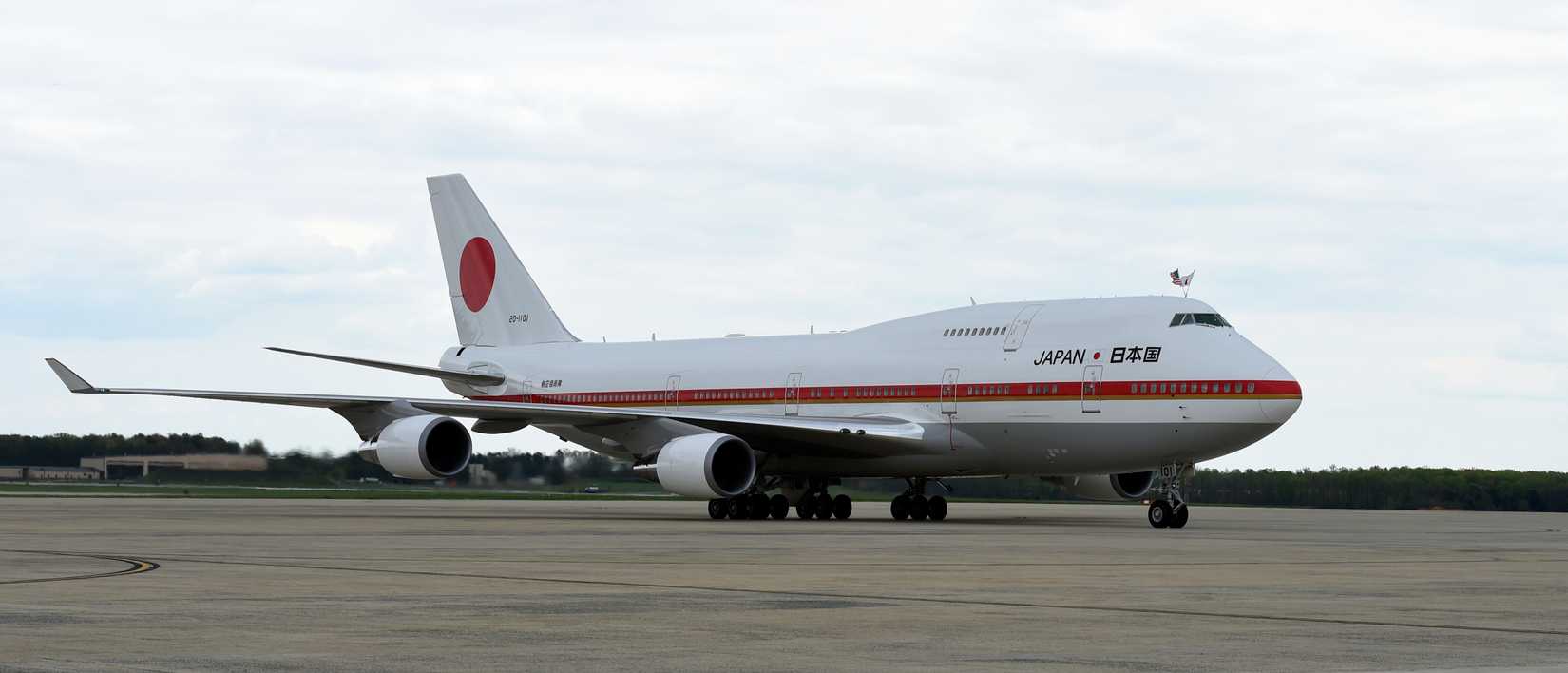

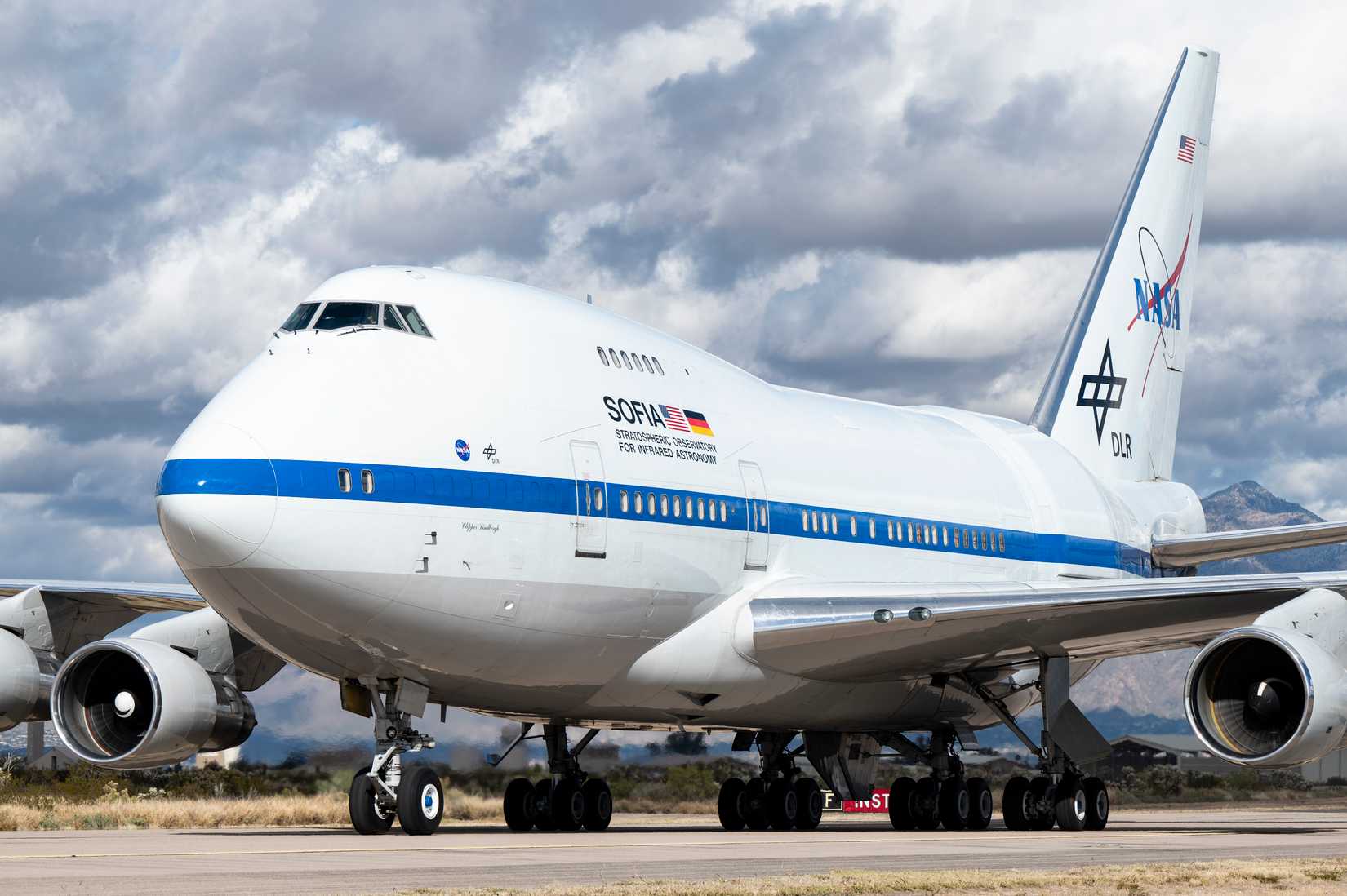

The 4 engines additionally present electrical and pneumatic energy for particular mission configurations, which require megawatts of regular electrical energy and enormous bleed-air move for tools. The ultimate 4 747s ever made had been 747-8F cargo haulers for Atlas Air. John Dietrich, President and Chief Government Officer of Atlas Air Worldwide, commented in 2023 upon the supply of the final 747s to roll off the meeting line:

“Our firm’s historical past and success are instantly linked to the 747 platform, and we’re honored to proceed our lengthy historical past of flying this iconic plane for our prospects world wide. Atlas Air was based over 30 years in the past with a single 747-200 transformed freighter. Since then, now we have spanned the globe working the 747 into properly over 800 airports in over 170 international locations with almost each sequence of the plane, together with Boeing’s 747 Giant Cargo Freighter for the transport of 787 Dreamliner components.”

The 747-8, by the numbers, as Boeing describes on the official web site:

So long as there’s a want to maneuver cargo too huge for the standard cargo door or governments require flying command facilities with the ability and redundancy of a small metropolis, the 747 has a spot. Its mixture of vary, velocity, payload, four-engine resilience, and conformity to current infrastructure will preserve it in a restricted however persistent demand for particular roles.

The A380neo & Emirates

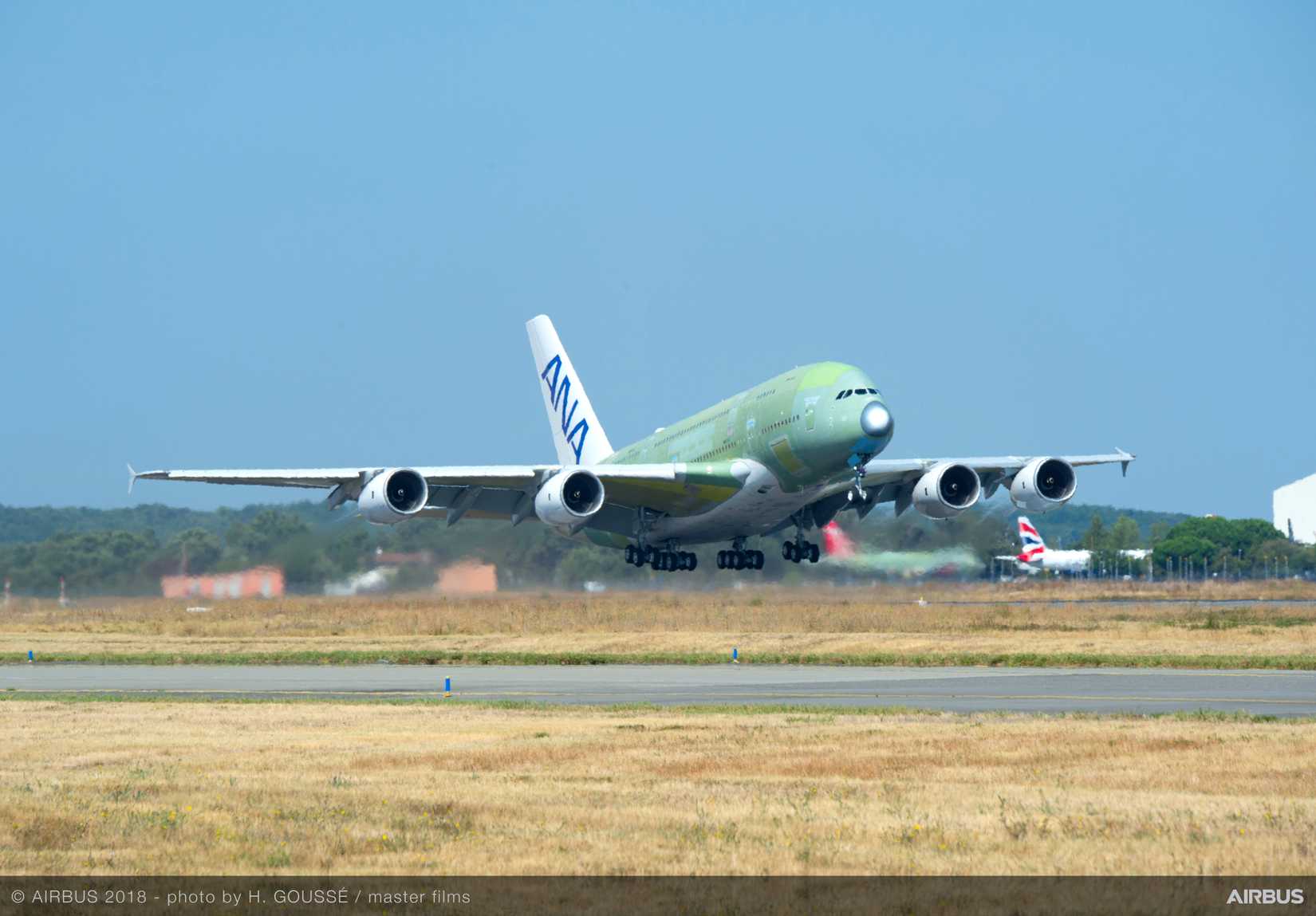

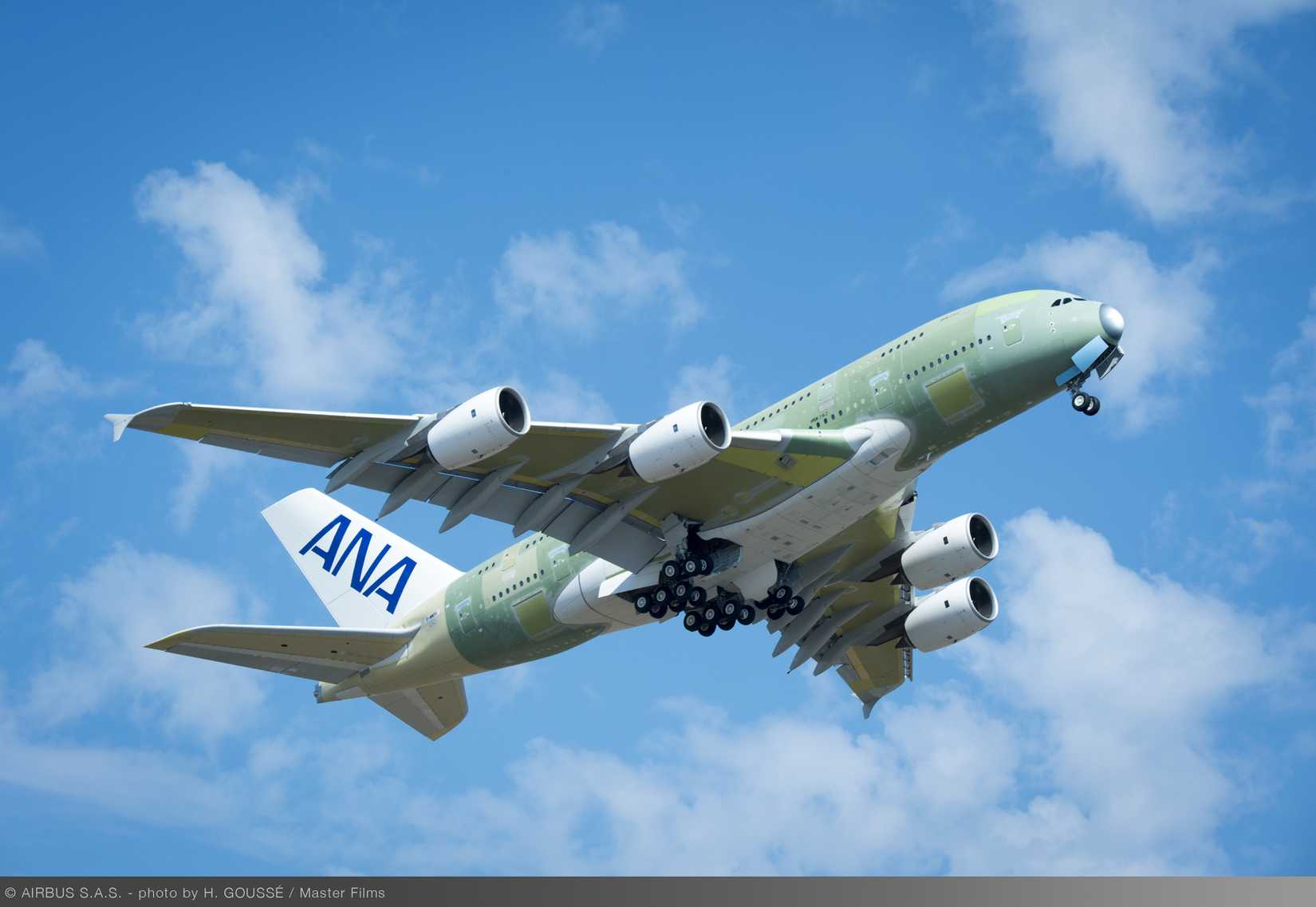

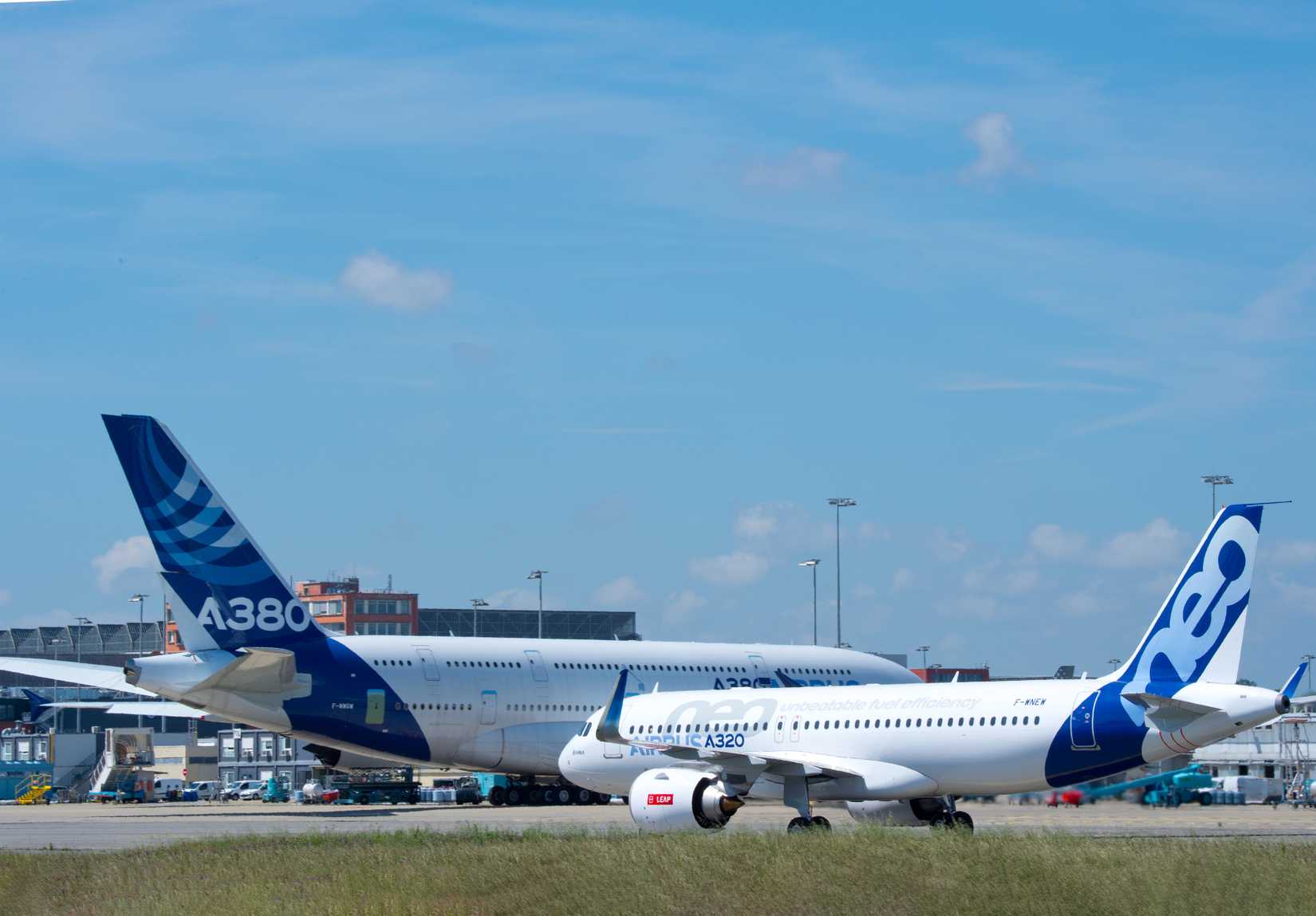

Airbus’ A380 was designed to cater to airports the place demand was already exceeding out there take-off and touchdown slots, like London Heathrow (LHR), New York JFK (JFK), New York JFK (NRT), and extra. The A380’s double-deck fuselage allowed airways to hold virtually 600 passengers in the identical slot footprint as a smaller wide-body whereas leaving room for freight.

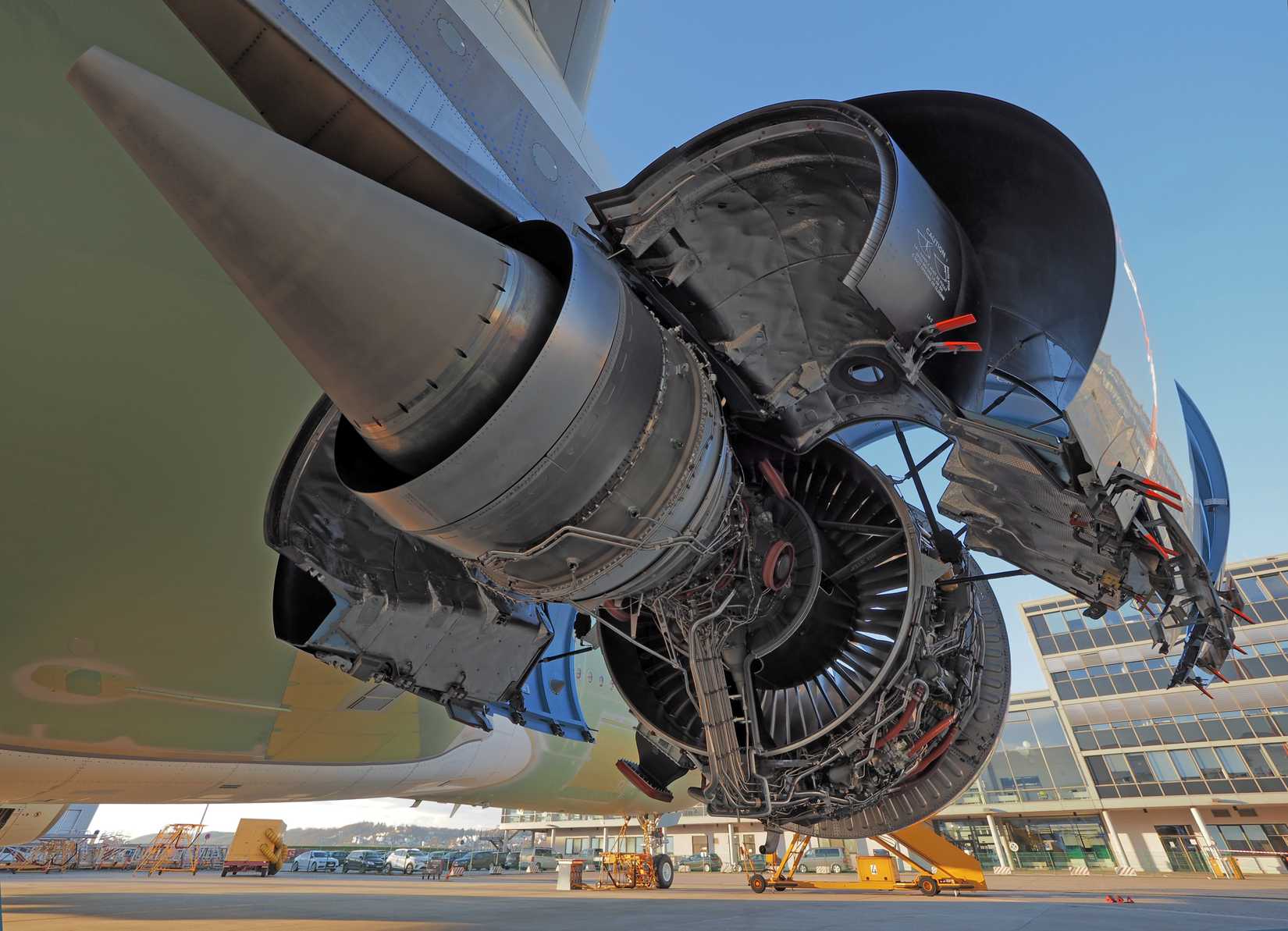

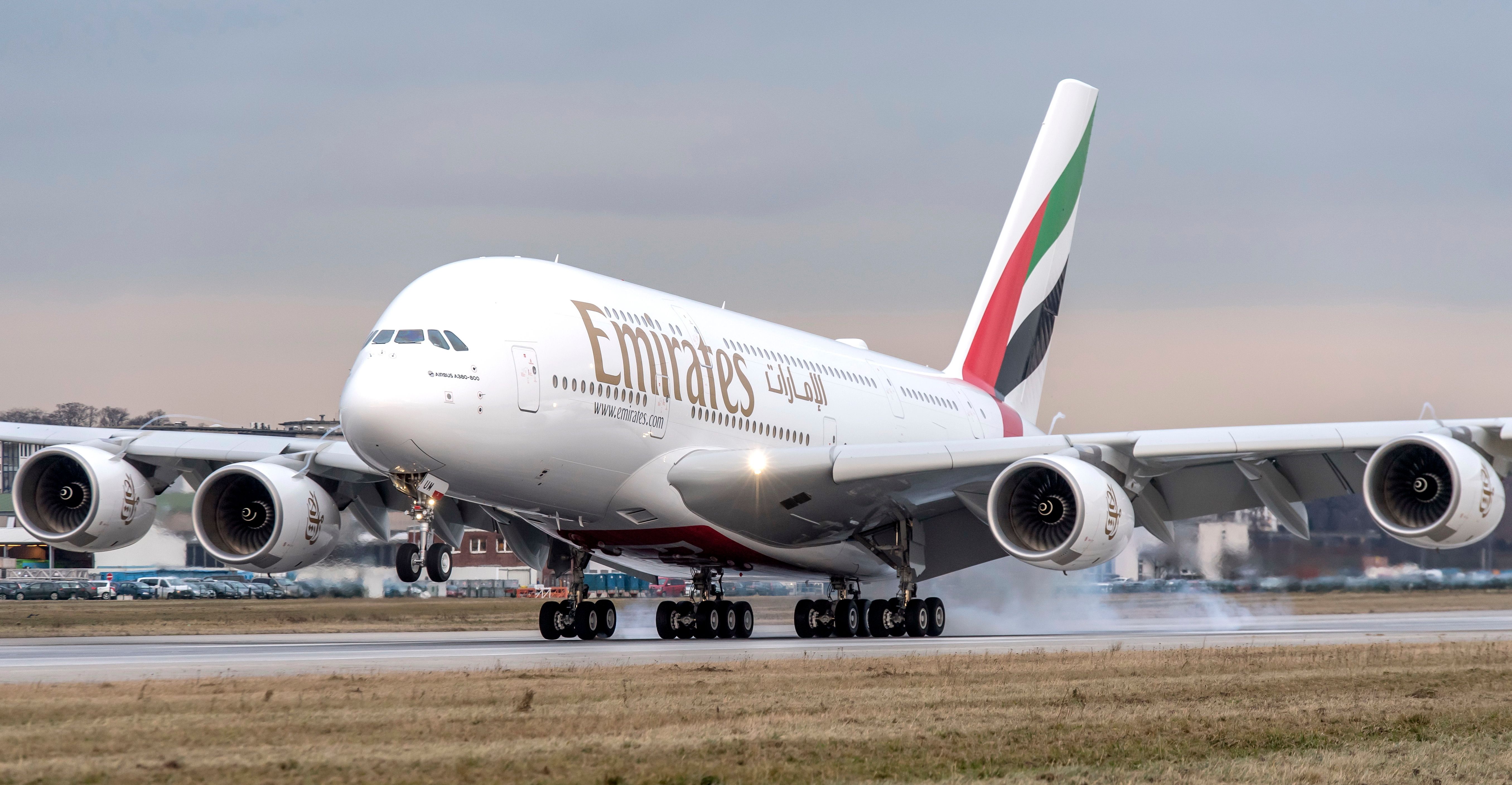

Emirates’ enterprise mannequin, which operates on the crossroads of Europe, Africa, Asia, and Oceania, allows Emirates to fill 80 to 90% of its 500-plus seats with premium-class vacationers. Emirates has lobbied Airbus for an “A380neo,” which might re-engine the plane with Rolls-Royce Advance or GE9X powerplants, trim structural weight, add aerodynamic tweaks, and probably even stretch the fuselage.

Under is a snapshot of a few of the key specs of Airbus’ gargantuan A380:

Emirates has reportedly claimed it will be completely satisfied to obtain between 60 and 80 A380neo variants ought to Airbus proceed with its improvement. The airline president, Timothy Clark, stated in a report from ch-aviation:

“We’ve made it crystal clear to (Airbus) within the occasion of the (A380) neo being launched we’d purchase it.”

In an interview with Enterprise Insider, Clark reaffirmed his airline’s confidence within the A380 and want to buy extra for its fleet that already leads the world with over 100 in stock, saying:

“The danger-averse nature of my peer group, CEOs, and boards might be a serious inhibitor to that. But when we had been to place $20 billion on the desk for Airbus, they’d most likely construct it for us.”

For Emirates, an A380neo would protect the gauge benefit, fulfill carbon-emissions limits via decrease particular gasoline burn, and prolong the lifetime of the A380 manufacturing line. Airbus nonetheless believes that demand past Emirates is just too skinny to justify the funding, following the top of manufacturing in 2021.

Quadjets Go Supersonic

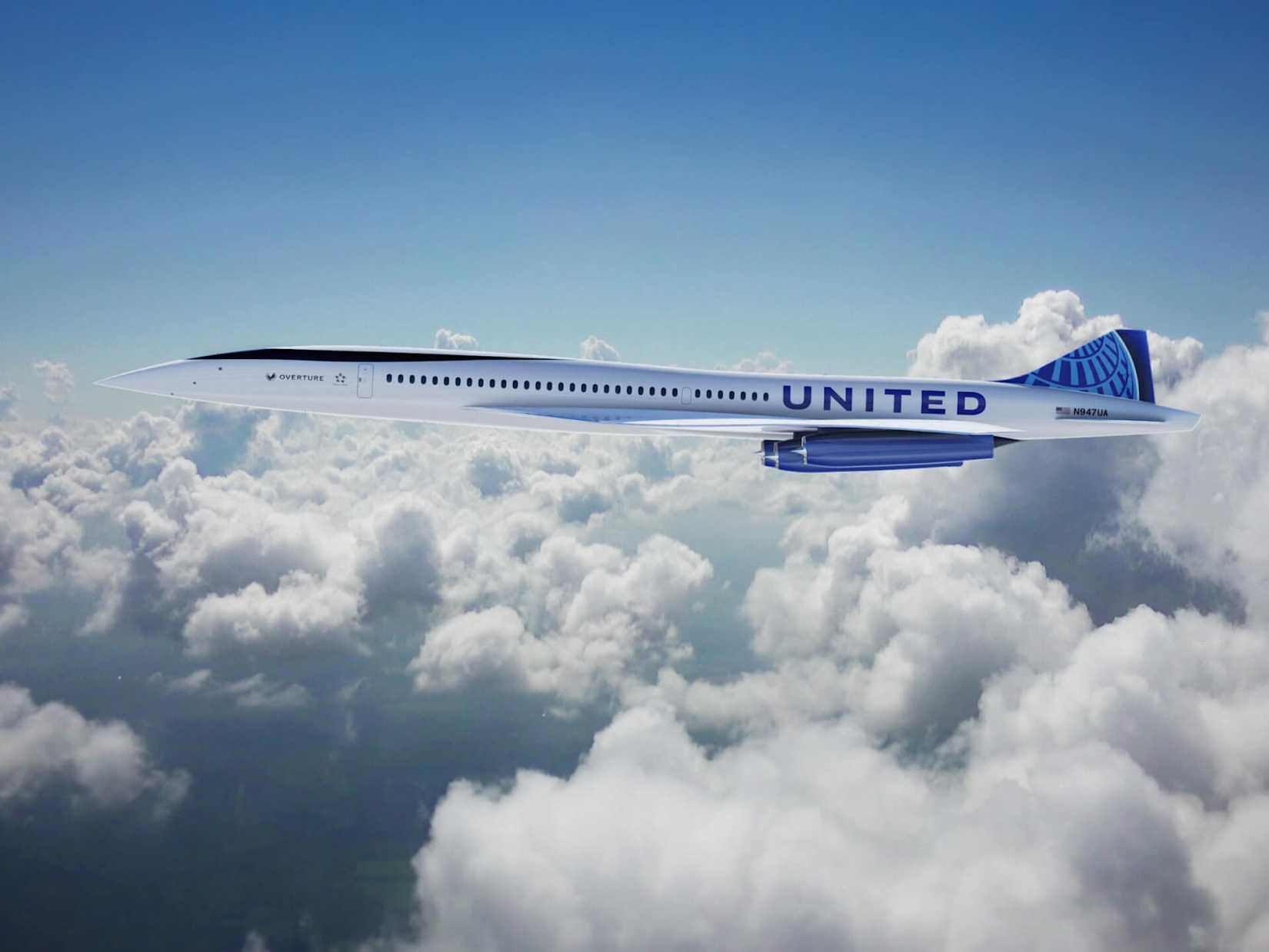

Growth’s Overture makes use of fifty years’ value of know-how developments for the reason that legendary Concorde first soared to the skies. Its 4 engines are medium-bypass turbofans, which considerably scale back gasoline use and exhaust noise whereas reaching supersonic thrust with out the necessity for afterburners.

A really totally different pressure of four-engine industrial airplane, however very more likely to be the subsequent to debut versus a brand new massive, heavy elevate mannequin. With a redesigned delta wing and a singular gull-wing profile that’s tailor-made for supercruise, it will likely be a quieter, cleaner alternative. Growth’s intention is to create a high-speed airliner that’s quieter, extra economical, and extra fuel-efficient than any earlier Supersonic Transport (SST).

The majority of the airframe can be product of carbon-fiber composites, which have a better strength-to-weight ratio and are way more heat-resistant than Nineteen Sixties metallic. Due to trendy composites, the airframe will endure the extraordinary flight regime and require little upkeep. The fabric additionally offers extremely environment friendly aerodynamic and airframe shapes for the formidable new jet.
